Mild Steel Plate Manufacturer, Hot Rolled Mild Steel Plates, Boiler Quality Mild Steel Plates Supplier, Galvanized Mild Steel Plate, High Tensile Mild Steel Plate, MS Plate Manufacturers in India

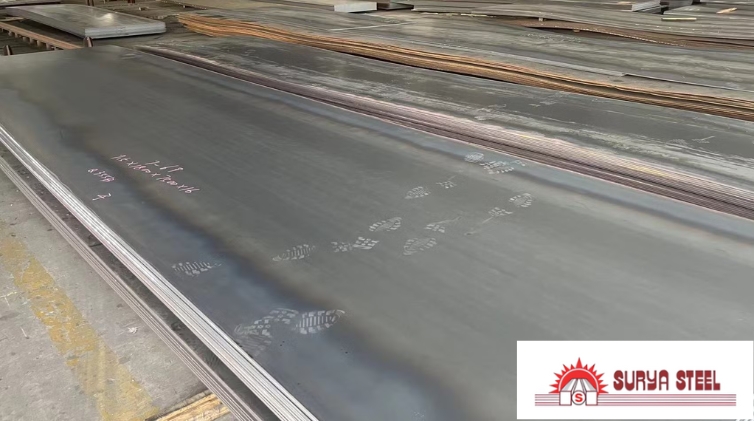

Surya Steel is a major Mild steel plates Manufacturer in India, and its Mild steel plates are supplier in various varieties according to ISO as well as international standards. Among our portfolio, there are the Hot Rolled Mild Steel Plates and Galvanized Mild Steel Plates, we are characterized by high strength and durability. Our Boiler Quality Mild Steel Plates are manufactured by modern technology and have exact dimensions, smooth finish, and long service life. These MS Plates come in a thickness of 3 mm to 200 mm and a length of 2,500 mm to 12,500 mm. All the plates are properly subjected to chemical and mechanical tests and are used in construction, fabrication, shipbuilding, and heavy machinery.
MS Plate for Oil & Gas Industry, Mild Steel Sheet & Plate, Pickled & Oiled Mild Steel Plate, Cold Formed Mild Steel Plate, Abrasion Resistant Mild Steel Plate, Industrial Grade MS Plate, Laser Cut Mild Steel Plate Supplier in India
Surya Steel is an acknowledged Mild Steel Plate Manufacturer and Supplier in India, supplying high-quality MS plates that meet ISO & international standards. Our MS Plates comprise MS Plates for the Oil & Gas Industry, manufacture to supply strength, durability, and resistance against corrosion. We manufactured Cold Formed Mild Steel Plates through the cold-drawn process, manufacturing accurate thickness and superior finish. Surya Steel supplying the lowest-priced Industrial Grade MS Plates of superior quality for per the requirements of the clients. We are also leading Mild Steel Round Bar Manufacturer in India.
Specifications of Mild Steel Seamless Plate
| Mild Steel Seamless Pipe | Specification |
| Product Name | Mild Steel Plates |
| Standards | IS 2062, ASTM A36, EN 10025 |
| Grades | IS 2062 E250, E350, E410, ASTM A36 |
| Thickness Range | 3 mm to 200 mm |
| Width Range | 1000 mm to 3000 mm |
| Length Range | 2500 mm to 12500 mm |
| Surface Finish | Hot Rolled, Cold Rolled, Pickled, Polished |
| Density | 7.85 g/cm³ |
| Tensile Strength | 410 – 560 MPa |
| Yield Strength | 250 MPa (Minimum) |
| Elongation | 20% (Minimum) |
| Hardness | ≤ 170 HB |
| Certification | EN 10204 3.1 / 3.2, ISO Approved |
| Processing Type | Hot Rolled, Cold Drawn, Annealed |
| Applications | Shipbuilding, Structural Fabrication, Construction, Pressure Vessels, Heavy Engineering |
| Country of Origin | Made in India |
Grades of Mild Steel Plate
Mild Steel Chemical Composition
|
AISI 1008 |
<0.1 |
0.3 to 0.5 Mn; 0.04 P; 0.05 S |
|
AISI 1010 |
0.08 to 0.13 |
0.3 to 0.6 Mn; 0.04 P; 0.05 S |
|
AISI 1015 |
0.13 to 0.18 |
0.3 to 0.6 Mn; 0.04 P; 0.05 S |
|
AISI 1018 |
0.14 to 0.2 |
0.6 to 0.9 Mn; 0.04 P; 0.05 S |
|
AISI 1020 |
0.17 to 0.23 |
0.3 to 0.6 Mn; 0.04 P; 0.05 S |
|
S275 |
0.18 |
1.5 Mn; 0.030 P; 0.030 S; 0.012 N; 0.55 Cu |
|
S355 |
0.2 |
1.6 Mn; 0.030 P; 0.030 S; 0.012 N; 0.55 Cu |
Mild Steel Mechanical Property
| Mechanical Properties | Metric | Imperial |
| Hardness, Brinell | 126 | 126 |
| Hardness, Knoop (Converted from Brinell hardness) | 145 | 145 |
| Hardness, Rockwell B (Converted from Brinell hardness) | 71 | 71 |
| Hardness, Vickers (Converted from Brinell hardness) | 131 | 131 |
| Tensile Strength, Ultimate | 440 MPa | 63800 psi |
| Tensile Strength, Yield | 370 MPa | 53700 psi |
| Elongation at Break (In 50 mm) | 15.0 % | 15.0 % |
| Reduction of Area | 40.0 % | 40.0 % |
| Modulus of Elasticity (Typical for steel) | 205 GPa | 29700 ksi |
| Bulk Modulus (Typical for steel) | 140 GPa | 20300 ksi |
| Poissons Ratio (Typical For Steel) | 0.290 | 0.290 |
| Machinability (Based on AISI 1212 steel. as 100% machinability) | 70 % | 70 % |
| Shear Modulus (Typical for steel) | 80.0 GPa | 11600 ksi |
Applications of Mild Steel Seamless Plate
- Petrochemicals Industry
- Food Industries
- Oil & Gas Industries
- Automotive Industry
- Pharmaceuticals Industry
- Sugar Mills
- Solar Energy System
- Cement Plants
- Textile Industries
